plastic vacuum forming machine | Vacuum Forming Machine

automatic vacuum forming machine vacuum luggage YESHINE

Inquire Online

Model

CP-20SF/CP-24SF/CP-28SF

Place of Origin

WenZhou,China(Mainland)

Brand

YESHINE

MOQ

1 SET

Payment

L/C, T/T

Delivery Time

10-20days

Shipping Port

Ningbo/Shanghai

Certification

CE.ISO

Price

Get Latest Price

Add success, do you want to check your shopping cart?

Ok Close

Get the latest price

Description

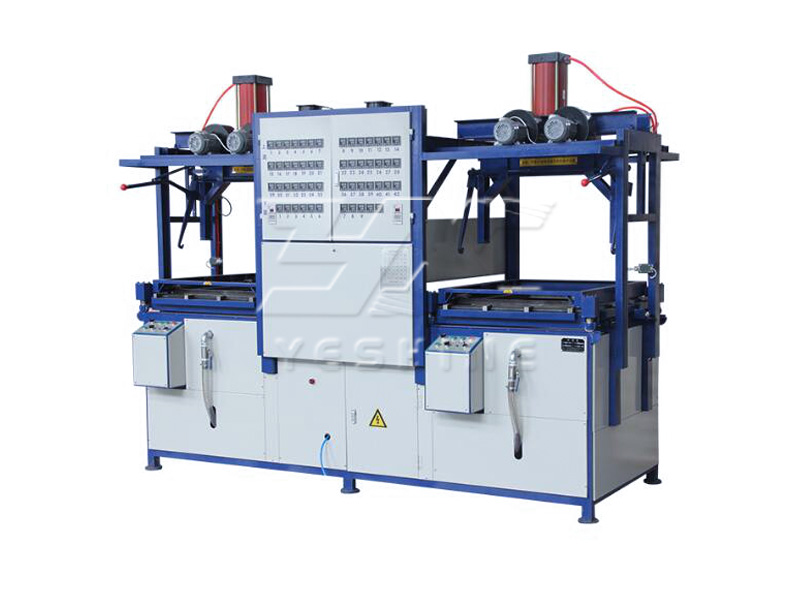

Our Vacuum Forming Machine has included Fully Auto, Semi-auto forming machine. They are all widely used in Luggage , Suitcase, Trolley bag , Refrigerator, Air condition，,bathroom production etc.

For the luggage shell forming, it is mostly produce 20inch, 24inch, 28inch luggage.

Other sizes and plastic products, please contact with us by custom-made design.

Technical Parameter

Mode:	CP-20SF	CP-24SF	CP-28SF
Max Forming area size:	600x440MM	700x540MM	800x640MM
Overall size:	2820x1330x2360MM	3120x1430x2400MM	3420x1530x2400MM
Weight:	1.2T	1.35T	1.55T
Total Power:	28KW	36KW	41KW

Product Details

1.Ceramic Heating Bar
2.High temperature resistance Pipe
3.PLC Taiwan Taida System
4.Forming Frame Base
5.Aluminum Mould Base
6.Up and Down Frame
7.Auto PLC Screen
8.20/24/28inch or more sizes frame

1.Ceramic Heating Bar

2.High temperature resistance Pipe

3.PLC Taiwan Taida System

4.Forming Frame Base

5.Aluminum Mould Base

6.Up and Down Frame

7.Auto PLC Screen

8.0/24/28inch or more sizes frame

Machine Feature

Semi-auto vacuum forming machine is workable for forming ABS.PC.PP.PS etc sheet.

It is specially used in Luggage ,Suitcase,Trolley Bag Shell, Refrigerator lnner,Safety Helmet,Lampshade,Car Parts,Air Conditioner,Bathroom and Other Plastic Products Forming Production etc.

Upper-lower double heating. Machine size can be made as customer demand.
