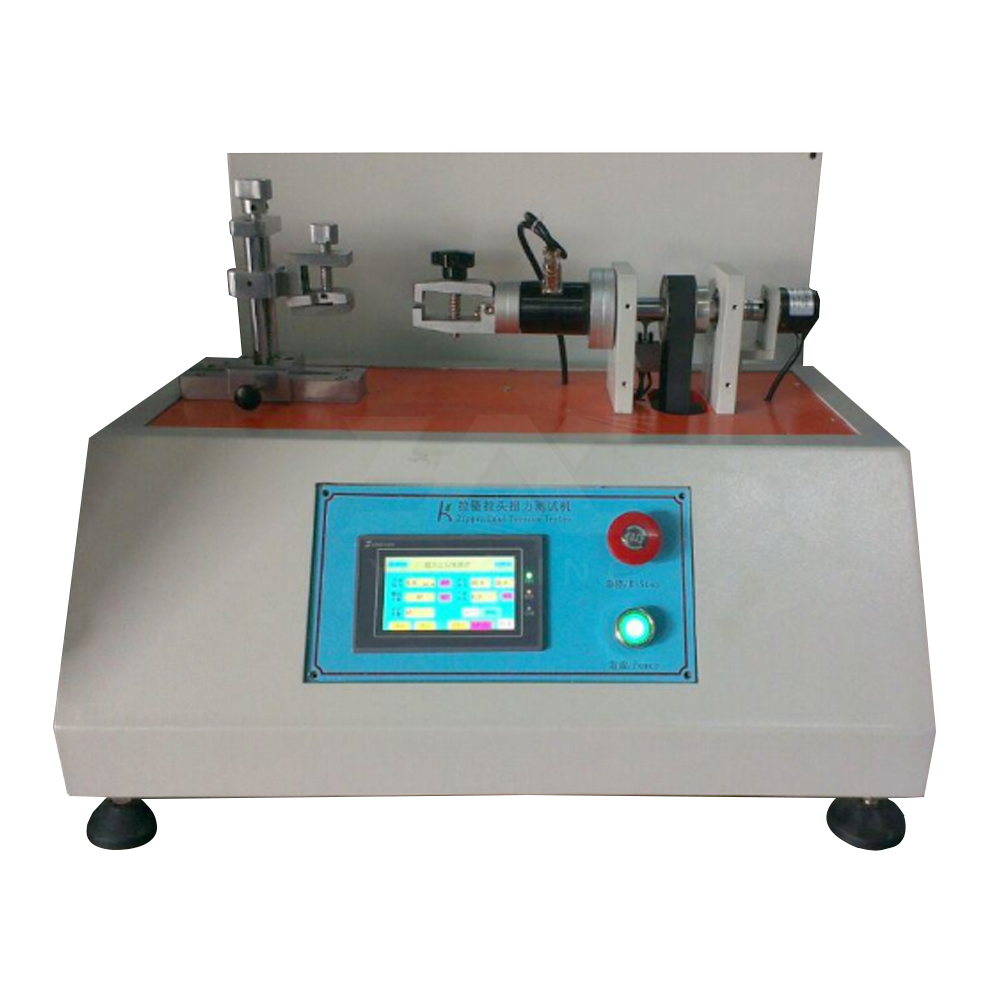

| Product Name | YESHINE Direct Manufacturer Pulling Head Torque Tester | |
| Model | CP-504 | |
| Place of Origin | WenZhou,China(Mainland) | |
| Brand | YESHINE | |
| MOQ | 1 set | |
| Payment | L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA | |
| Delivery Time | 30-40 days | |
| Shipping Port | Ningbo/Shanghai | |
| CE.ISO | ||
Product description: It is used for the torsion test of metal, injection molding and nylon zipper.
The torque measurement is composed of a high-precision torque sensor
and a microcomputer force measuring system, which has the functions of automatic tracking measurement of torque value and automatic recording of peak value.
It can complete the torsion strength test of all kinds of pullers.
Design standard: QB / t2171-2014, QB / t2172-2014, QB / t2173-2014, etc.
Product specification: control mode:PLC touch screen control, human-machine interface operation mode.
Torque test range:0.1～5 N·m
Load accuracy:≤±1% F·S Torsional speed:1～1.5 r/min
Loading mode: unidirectional torsion: ① loading direction: clockwise; ② unloading direction: anticlockwise
Torsion angle range:0～300℃
Standard configuration: one set of clamp and one set of torque test device
Power supply: AC220V
Boundary dimension: 550 × 300 × 500mm (L × w × h)
Weight:35kg
