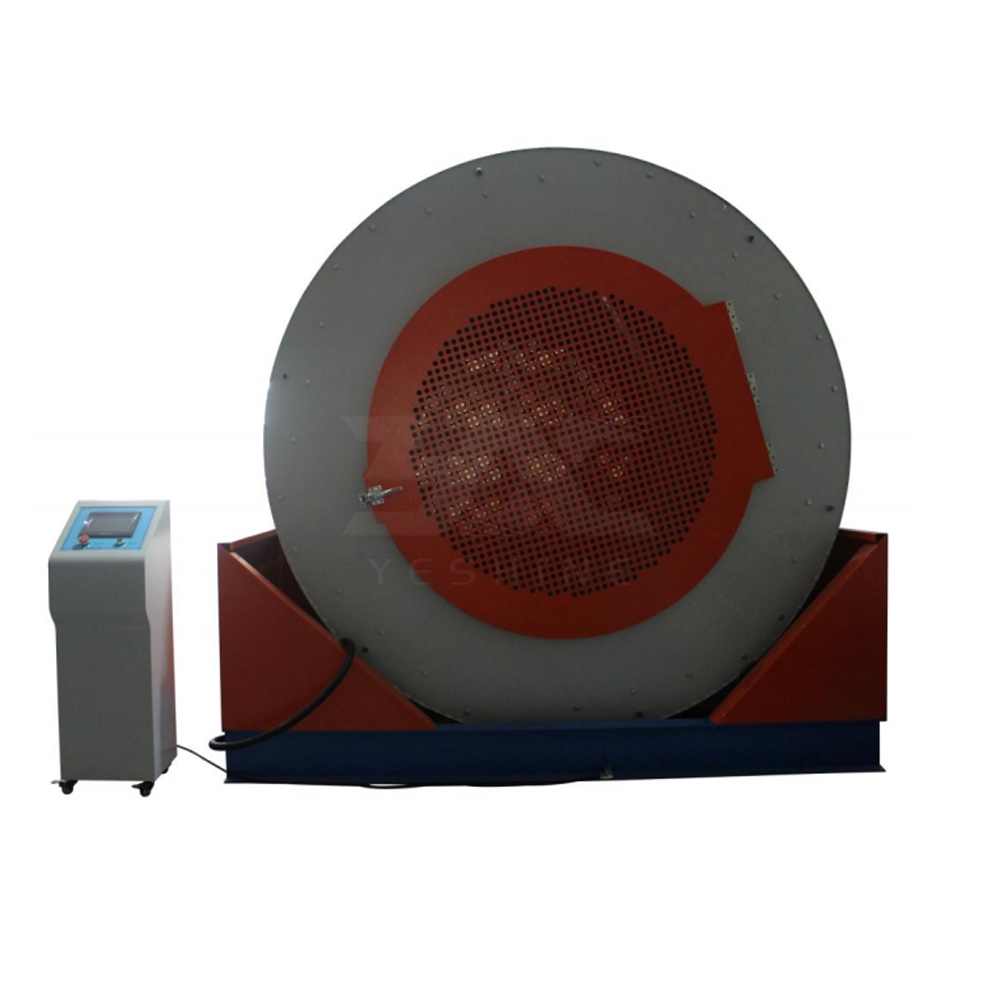

| Product Name | YESHINE Good Quality Luggage Tumble Tester | |
| Model | CP-512 | |
| Place of Origin | WenZhou,China(Mainland) | |
| Brand | YESHINE | |
| MOQ | 1 set | |
| Payment | L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA | |
| Delivery Time | 30-40 days | |
| Shipping Port | Ningbo/Shanghai | |
| CE.ISO | ||
Product description: The product is designed and manufactured according to ISTA and GB standards,
and simulation tests are conducted for the tumbling and impact of suitcases and other packaging boxes during transportation.
The box rolls and impacts in the drum. After the specified number of revolutions is completed, check the damage of the box as the basis for product improvement.
According to the standard: QB/T4116-2010/QBT 2155-2010
Product specification: 1.Inner diameter of drum: ￠ 2200mm;
Depth: 1250mm
Drum speed: 2 rpm
Obstacle specification: 3 groups of 96 degree obstacles Cone block 1 piece One transverse baffle
Specimen size: (max.) 1000 × seven hundred × 400mm
Counter: 0 ~ 99999, settable (automatic shutdown)
Transmission system: Taiwan Zhangyi speed regulating motor is adopted, and the operation is stable
Machine size: 250 * 160 * 250cm (length * width * height)
Power supply: 220V 50Hz
Weight: 3860 kg
