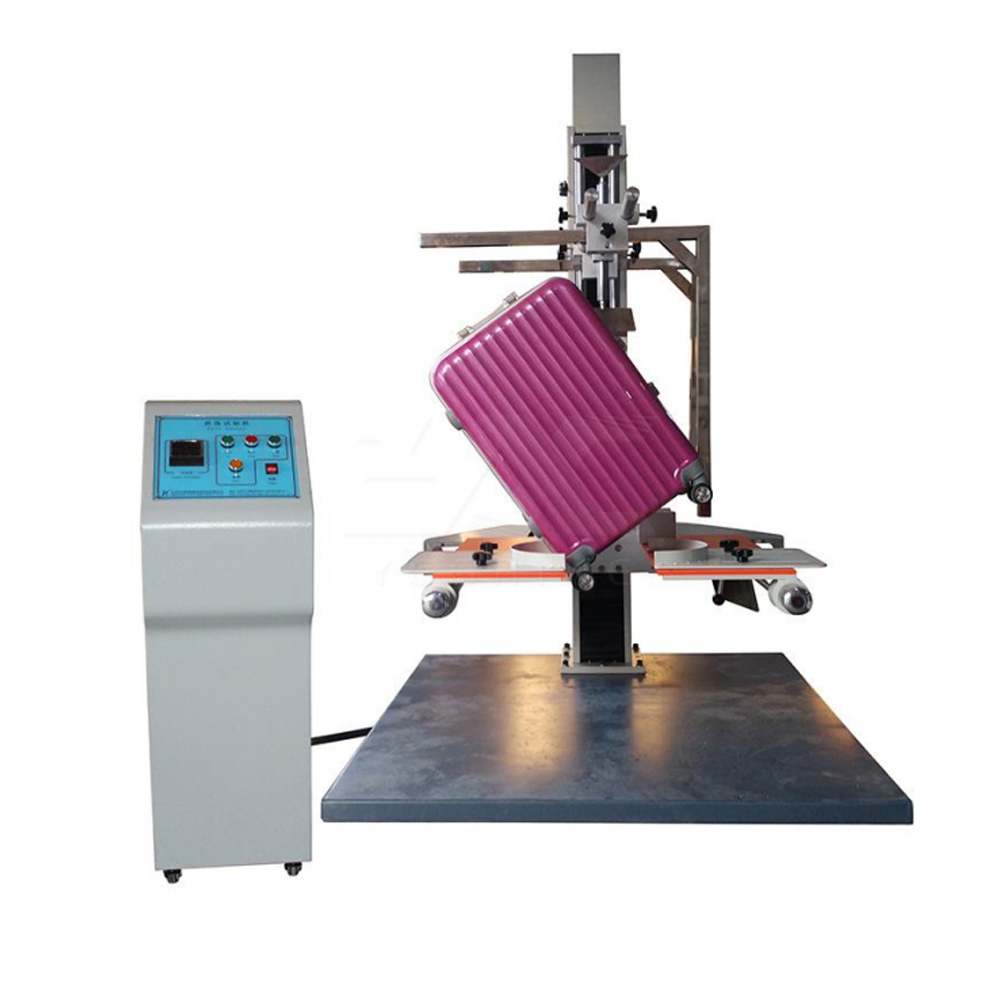

Product description: This series of drop testing machine adopts double column direction, spring buffer, height scale indication,

stable and reliable operation, equipped with professional drop fixture for bags, which can realize edge, face and angle drop.

In the process of moving or transporting the product, it may fall down and cause damage to the internal product.

If the damage is prevented in advance, the machine can be used to predict the test, so as to get the best solution,

so as to minimize the loss in the process of transportation

According to the standard: QBT 2921-2018 luggage drop test method, QBT 2155-2018 travel luggage.

Product specification: Drop height: 450 ~ 1500mm

Display mode: digital height scale

Maximum weight of test piece: 60kg

Maximum dimension of test piece; (L × w × h) 800 × 1000 × 800mm

Drop panel area (w × L) 1200 × 1400mm

Single wing area (w × L) 350 × 760mm

Power supply AC220V, 50Hz,

Weight (about) 420kg

Overall dimension (L × w × h) 1400 × 1200 × 2140mm
