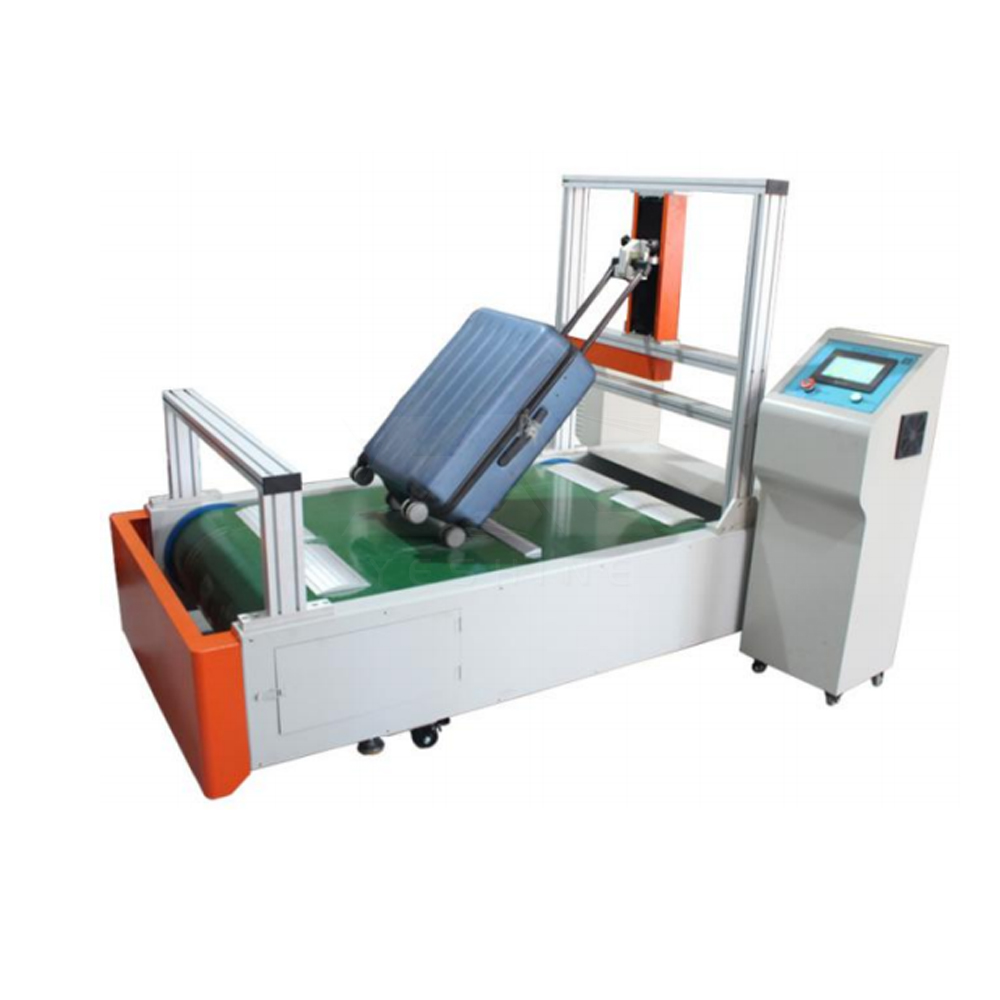

Product description: This test machine is used to test a certain load loaded in the traveling case and traveling bag with wheels.

The belt type test machine is used to test the friction and impact between the bump plate and the traveling wheel of the sample,

and to check whether the wheels and pull rods are damaged during the traveling of the case and bag. (test two-wheel and four-wheel trolley boxes)

According to the standard: QB / T 2920-2018 luggage walking test method QBT 2155-2018 travel luggage.

Specification: Control mode: color touch screen (convenient and practical), man-machine interface operation mode.

Test function: the interval time can be adjusted during the test, with memory function Test speed: 0-4.5km/h (adjustable)

Auxiliary function: it will stop automatically when the wheel falls in the middle

Bump board: 6 big blocks and 6 small blocks

Belt specification: belt length 3300mm

Pull rod box test angle adjustment: hand wheel quick adjustment

Boundary dimension: 200 * 100 * 160cm

Power supply: AC220V 50Hz
